이동대차 및 호이스트에 부착하여 Compact bar에서
기기로 급전하는 장치.
The collector is installed to the moving machines or
hoist and delivered to the device for current flowing.

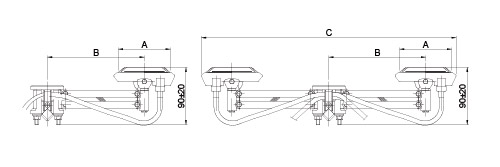

Order No. poles A(mm) B(mm) Rating
LY5690 Single 68 140 1P 600V 30A
LY5691 Double 68 140 1P 600V 60A
LY5692 Single 85 140 1P 600V 60A
LY5693 Double 85 140 1P 600V 120A
